ATU测试呼叫重建后统计为掉话问题

时间:09-25 整理:3721RD 点击:
如题。
主叫:

被叫:

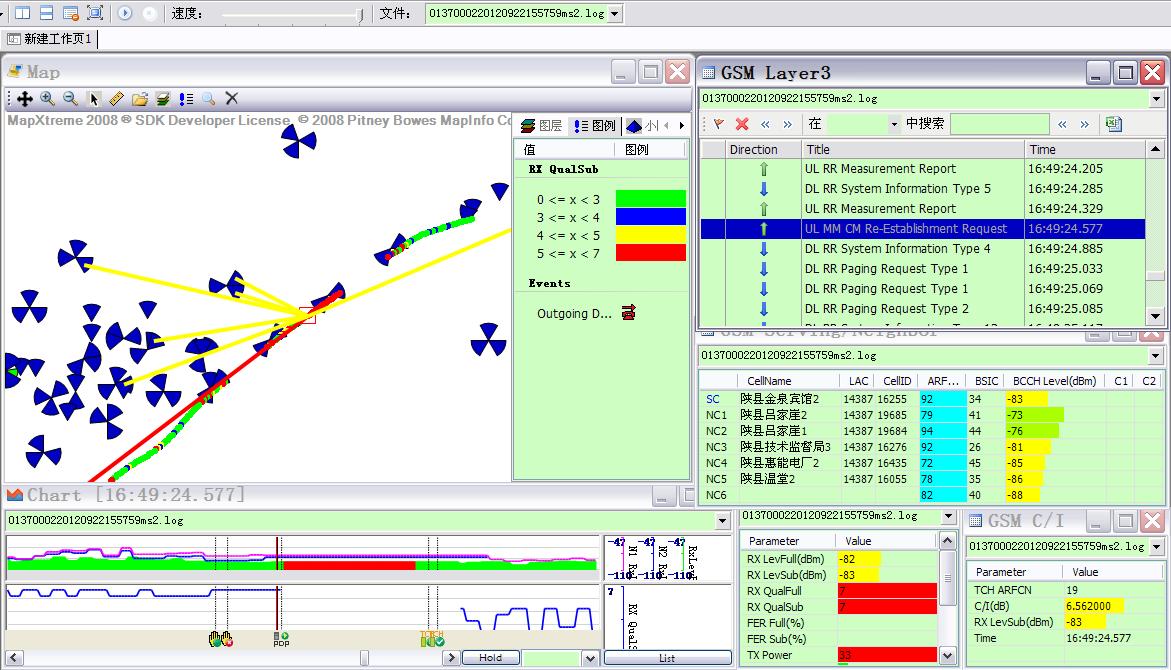

如图:该覆盖区域基站光纤断,导致无覆盖。主被叫在该区域都发生呼叫重建信令,且重建失败,但为什么被叫计为一次掉话而主叫未统计在内?

被叫的呼叫重建信令如下:
File:0137000220120922155759ms3.log
HexContent:052802035359A605F45CA0C2E51364F000383371C8
Title:UL MM CM Re-Establishment Request
Time:16:49:27.633
Ciphering Key Sequence Number: 2
Mobile Station Class Mark:
 RF Power Capability: Class 4
 A5/1 Algorithm Supported: Available
 Revision level: Used by mobile stations supporting R99 or later versions of the protocol
 ESIND : Controlled early classmark sending option implemented in the MS
 FC Frequency Capability: The MS Does Support The E-GSM or R-GSM
 Short Message Capability: Mobile station supports mobile terminated point to point SMS
 SS Screening Indicator:1Defined in GSM 04.80
 Pseudo-Synchronization Capability: Present
 VBS: (0) NO VBS Capability or NO Notifications Wanted
 VGCS: (0) No VGCS capability or no notifications wanted
 A5/2 Algorithm Supported: Not available
 A5/3 Algorithm Supported: Available
 CM Service Prompt: 'Network initiated mo cm connection request' supported for at least one cm protocol.
 CM3: The ms supports options that are indicated in classmark 3 IE
Mobile Identity:
 Type of Identity: TMSI/P-TMSI
 ODD/EVEN Indication: Even Number of Identity Digits And Also When The TMSI/P-TMSI Is Used
 Identity Digits: 1554039525(0x5ca0c2e5)
Location Area Identification:
 MCC: 460
 MNC: 00
 LAC: 14387
呼叫重建信令前一条是测量报告,后一条是空闲态的TYPE3信令

按理说就应该是掉话啊,掉话是怎样定义的:手机从专用模式转换为空闲模式,而没有出现disconnect或releas中的任一条消息,就记为掉话。
