type of GSM Antennas in a USB modem !

Hello

Any idea on, what type of antenna exists in USB modems ?

if any one can upload a picture or tell me where to but would be very good

Thanks

HI Flashking

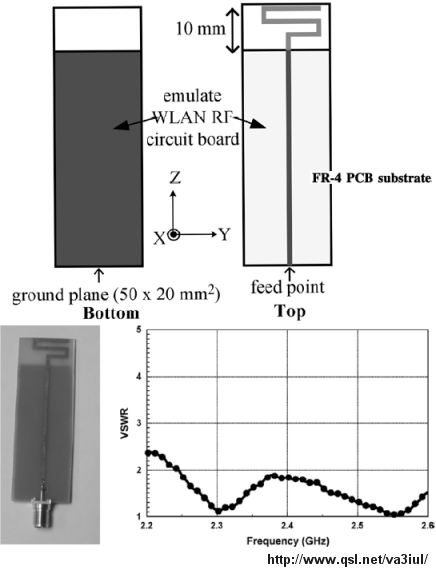

I thinks have lots of Antenna to desinengn. I give u a example to design. Antenna of usb moderms is mirostrip antenna.

thanks but I think this is an old antenna, maybe from 2005

I need ideas for current antennas, existing in smart phones and usb modems

Thanks

Hi
I think u should design antenna by form yourself. If u want to find some example about antenna, I think u should find it in IEEE websize. Antenna use in smart phone, I think it's secrret of all vendor.

Any USB GSM/3G/4G modem or cell phone, if it have a FCC certification number can you find photos of the antennas at www.fcc.com.
Dominating type of antenna is multiband PIFA for both modem and cell phones regarding this type of wide band internet connection.
