Feed to Helix antenna

时间:04-05 整理:3721RD 点击:
what are the ways to excite helix antenna?
how to connect helix wire to center conductor of coaxial? with cylinder of radius as same as helix wire or with sheet ?
what is the far field distance for it ?

A helix with a ground plane behind it has impedance 140 Ohms.
This method is to include a 83.6 Ohms quarter wave electrical length line between the 50 ohms input and the helix.

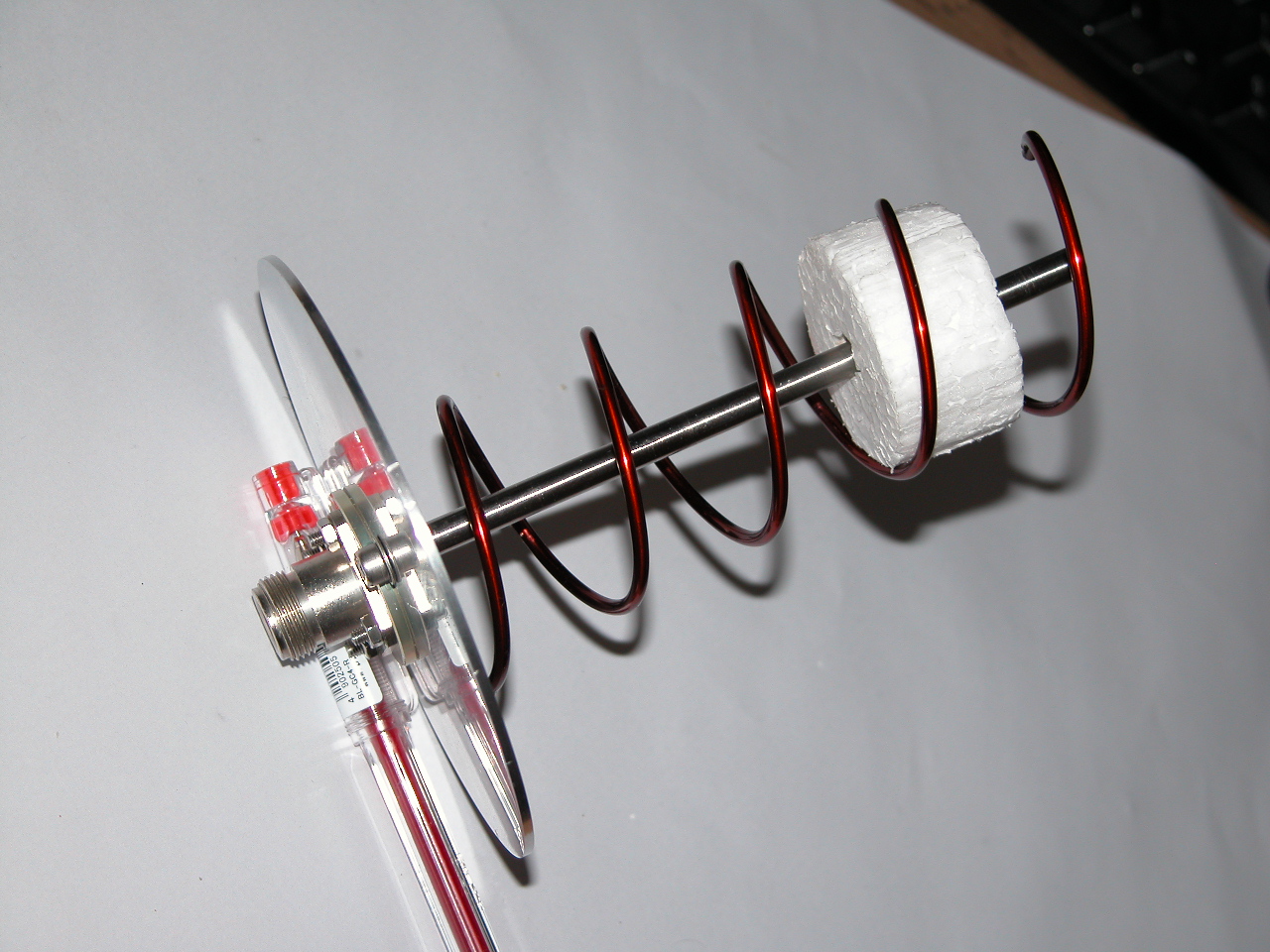

One physical form of this is to make the first quarter-turn be a "Lecher Line", which is a single line set over a ground plane. It becomes a wider tab over for the first quarter-turn. Pictures are of a 2.4GHz prototype test build. It can be tweaked a bit to optimum match by slightly changing the height of the tab. Also, a capacitive adjustment screw of tab from the ground plane to near the end of the Lecher line can tune it a little. Easy, non critical, quite wideband, but if the quarter-turn tab is the wrong length, that is bad!
