Antenna Array in HFSS
时间：04-05
整理：3721RD
点击：
Hi,

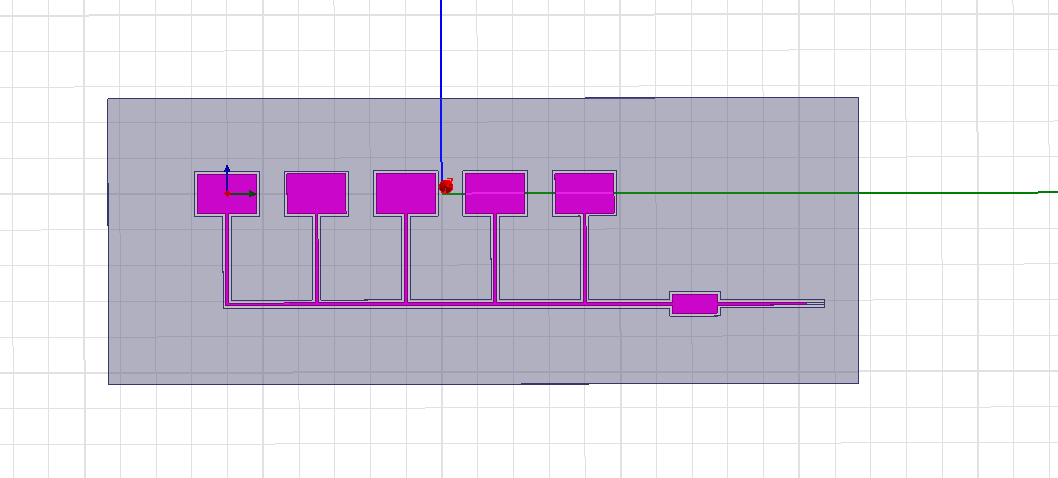

I have designed a linear patch array of 5 elements with CPW feed.(the pic is attached)
My question is that in order to get the radiation pattern and 3D polar plot this array, do I have to use the concept of Antenna Array Setup or do i have to insert the infinit sphere for 2D and 3D the same way as we do for a single patch antenna.
Thanks in advance.
I have designed a linear patch array of 5 elements with CPW feed.(the pic is attached)
My question is that in order to get the radiation pattern and 3D polar plot this array, do I have to use the concept of Antenna Array Setup or do i have to insert the infinit sphere for 2D and 3D the same way as we do for a single patch antenna.
Thanks in advance.
