need help in antenna design in HFSS
时间：04-05
整理：3721RD
点击：
hello everyone

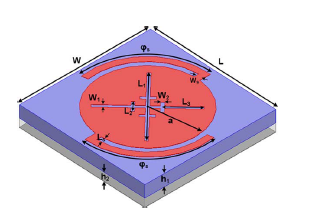

I am working on this structure in hfss and much confused about these delay lines attatched to the circular patch. I have created this delay line using two angular arcs , ended it with polyline then cover and united all these. Now the problem is that when I give the sweep to the ?phi S? of this delay line (which is related with the angular arcs) the angular arcs move accordingly but the polyline which I used to end my delay line remains there as it has no relation with ?phi s?. So kindly guide me that how should I design my structure so that when I give sweep to the angle the whole delay line move?
I am working on this structure in hfss and much confused about these delay lines attatched to the circular patch. I have created this delay line using two angular arcs , ended it with polyline then cover and united all these. Now the problem is that when I give the sweep to the ?phi S? of this delay line (which is related with the angular arcs) the angular arcs move accordingly but the polyline which I used to end my delay line remains there as it has no relation with ?phi s?. So kindly guide me that how should I design my structure so that when I give sweep to the angle the whole delay line move?
