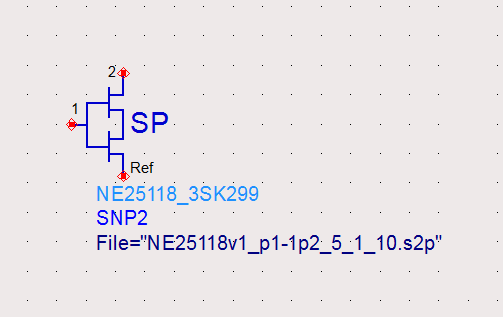

Why are the gates joined here?I expected them to be isolated.What am I supposed to do?
Its internal configuration is so that. It may be used as a inverter ( for instance ring oscillator) or anything else.,.
But I want to use it as mixer
This device is using an s2p file for the model. It is not possible to simulate a mixer circuit with only s-parameter data.
So then which parameters should I use.Please reply
You should find a nonlinear model of this device.
