Two port resonator in HFSS

时间:04-04 整理:3721RD 点击:
Hello!

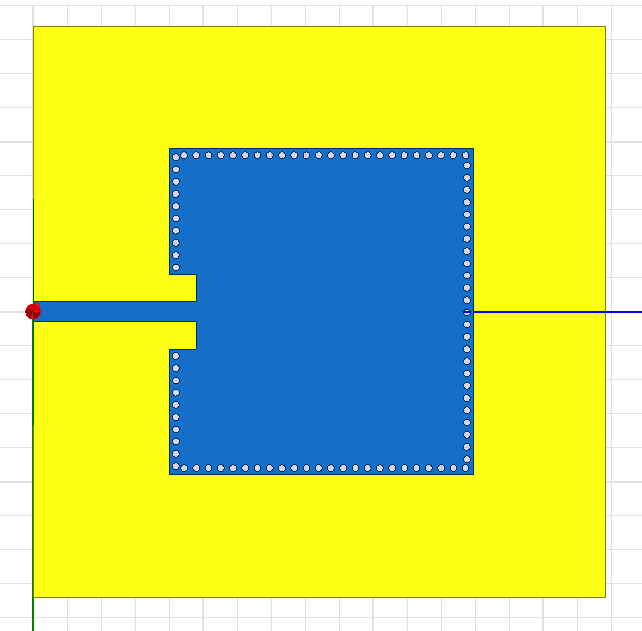

I have designed a one-port resonator in HFSS. I am not sure how to make it a two-port excitation? I have never designed a structure with 2-ports.

Should I do it in the same way as I designed port 1 (microstrip line) the other side of the square resonator?

Thanks!
