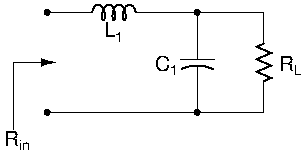

I am trying to design a L match in my antenna to tune my antenna to a particular frequency. I am using this configuration.

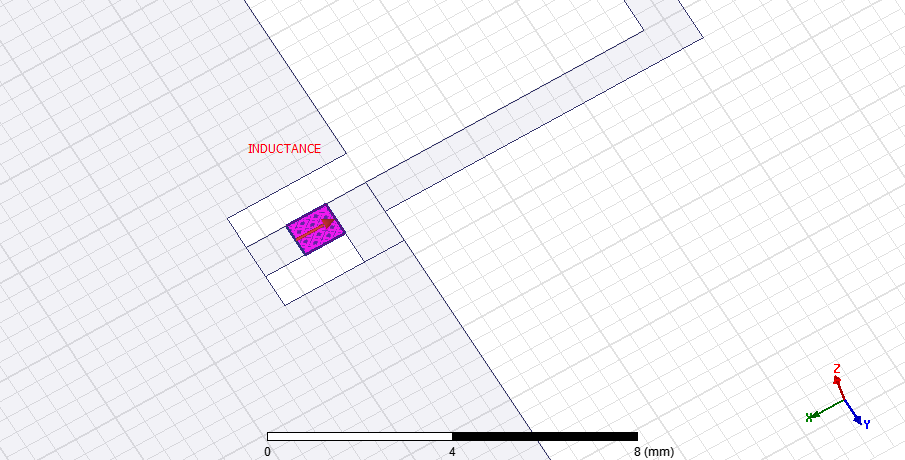

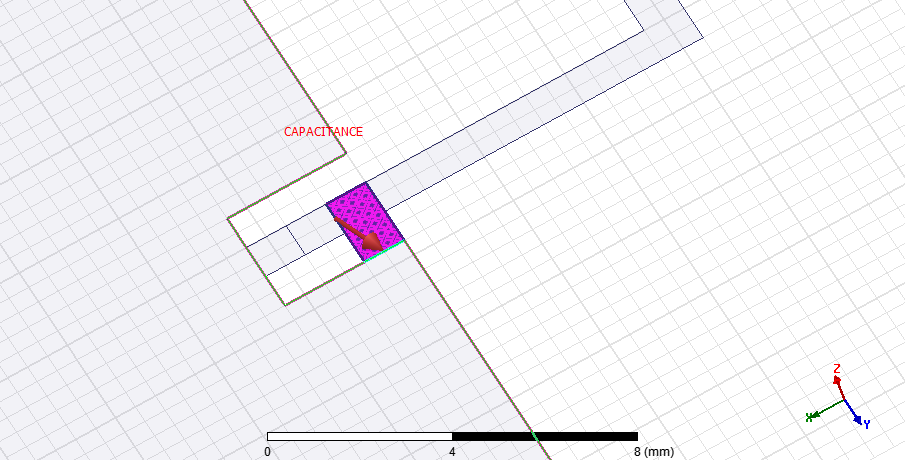

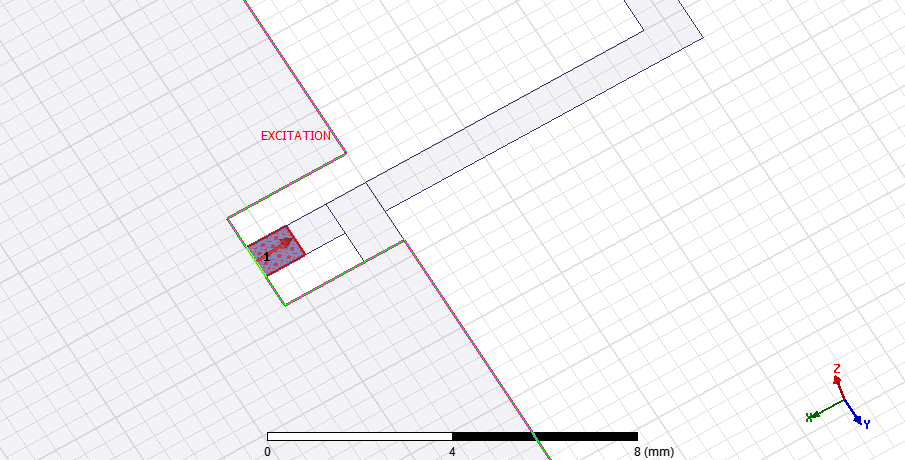

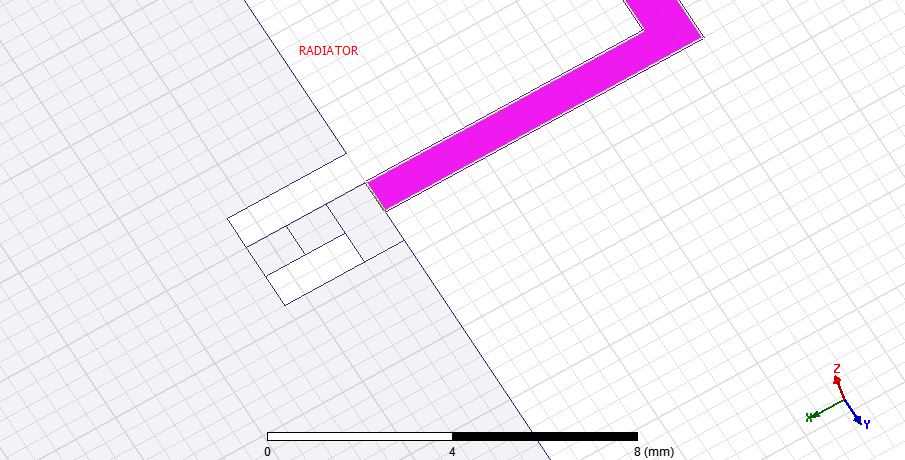

I have made the inductance and capacitance using LumpedRLC boundary excitation.I am also adding the screenshots of my current setup
The L match does not tune my antenna to a the desired frequency that I want . Please help me with this !
Review the setup and tell if this is wrong and what changes do i need to make to get the desired results.
