NCS8805：LVDS/RGB转EEDP芯片支持4K

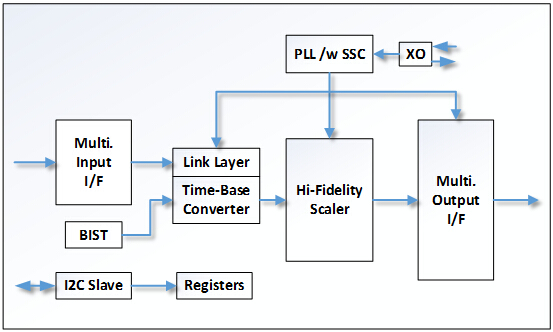

The NCS8805 is a display format converter with Hi-Fidelity scaling function. Sitting between the application processor and the LCD panel, it bridges the gaps between different display interfaces and different resolutions. The goal is to let our customer completely get over the issue of display compatibility.

Features

• Ÿ Covers a wide range of display format

Multiple input/output interfaces supported

Output resolution from HD to 4K

Input resolution from HD to 2K

• Ÿ Advanced fractional scaler

       Hi-Fidelity scaling

Supports any scaling ratio between 1:2 and 2:1

• Ÿ Low power consumption
