使用adb命令dump isp相关寄存器发生KE解决方法

[DESCRIPTION]
因为linux 3.10内核， proc文件系统的创建接口已经由proc_file_entry()变为proc_create()，同时proc文件系统的设备方法接口定义发生了一些变化。以/proc/driver/isp_reg为例，当使用adb shell cat/proc/driver/isp_reg就会发生KE。下面以/proc/driver/isp_reg为例介绍解决方法：
[SOLUTION]
1、修改/proc/driver/isp_reg的文件设备方法。
isp_reg的设备方法定义在alps/kernel-

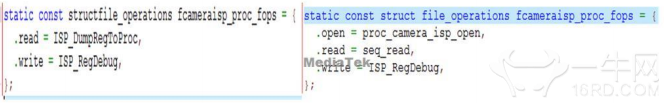

3.10/drivers/misc/mediate/mach/<project>/CAMERA_isp.c文件中。代码如下，左边为修改前的定义，右边为修改后的定义。

2proc_camera_isp_open函数的定义如下：

1. static int proc_camera_isp_open(struct inode *inode, struct file *file)

2. {

3. return single_open(file, subsys_camera_isp_read, NULL);

4. };

复制代码

3、 Single_open()函数由内核提供；
4、 subsys_camera_isp_read()函数的定义：

1. static int subsys_camera_isp_read(struct seq_file *m, void *v)

2. {

3. int i;

4. seq_printf(m,"======top====\n");

5. for (i = 0x0; i<= 0x1AC; i += 4)

6. {

7. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

8. (unsignedint)ISP_RD32(ISP_ADDR +i));

9. }

10. seq_printf(m,"======DMA====\n");

11. for (i = 0X200;i <= 0x3D8; i += 4)

12. {

13. seq_printf(m,"+0x%08x 0x%08x\n\r", (unsignedint)(ISP_ADDR +i),(unsigned

14. int)ISP_RD32(ISP_ADDR+ i));

15. }

16. seq_printf(m,"======tg ====\n");

17. for (i = 0x400;i <= 0x4EC; i += 4)

18. {

19. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

20. (unsignedint)ISP_RD32(ISP_ADDR +i));

21. }

22. seq_printf(m,"======cdp(including EIS)====\n");

23. for (i = 0xB00;i <= 0xDE0; i += 4)

24. {

25. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

26. (unsignedint)ISP_RD32(ISP_ADDR +i));

27. }

28. seq_printf(m,"======seninf ====\n");

29. for (i = 0x4000; i <= 0x40C0; i+= 4)

30. {

31. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

32. (unsignedint)ISP_RD32(ISP_ADDR +i));

33. }

34. for (i = 0x4100; i <= 0x41BC; i+= 4)

35. {

36. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

37. (unsignedint)ISP_RD32(ISP_ADDR +i));

38. }

39. for (i = 0x4200; i <= 0x4208; i+= 4)

40. {

41. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

42. (unsignedint)ISP_RD32(ISP_ADDR +i));

43. }

44. for (i = 0x4300; i <= 0x4310; i+= 4)

45. {

46. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

47. (unsignedint)ISP_RD32(ISP_ADDR +i));

48. }

49. for (i = 0x43A0; i <= 0x43B0; i += 4)

50. {

51. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

52. (unsignedint)ISP_RD32(ISP_ADDR +i));

53. }

54. for (i = 0x4400; i <= 0x4424; i += 4)

55. {

56. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

57. (unsignedint)ISP_RD32(ISP_ADDR +i));

58. }

59. for (i = 0x4500; i <= 0x4520; i += 4)

60. {

61. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

62. (unsignedint)ISP_RD32(ISP_ADDR +i));

63. }

64. for (i = 0x4600; i <= 0x4608; i += 4)

65. {

66. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

67. (unsignedint)ISP_RD32(ISP_ADDR +i));

68. }

69. for (i = 0x4A00; i <= 0x4A08; i += 4)

70. {

71. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

72. (unsignedint)ISP_RD32(ISP_ADDR +i));

73. }

74. seq_printf(m, "====== 3DNR ====\n");

75. for (i = 0x4F00; i <= 0x4F38; i += 4)

76. {

77. seq_printf(m,"+0x%08x 0x%08x\n", (unsigned int)(ISP_ADDR+ i),

78. (unsignedint)ISP_RD32(ISP_ADDR +i));

79. }

80. return 0;

81. };

复制代码

5、 seq_read()函数由内核提供， ISP_RegDebug()保持不变。因为linux-3.10 procfs API changed， adb shell cat proc/diver/camio_reg同样需要修改，修改的方法和修改cat proc/diver/isp_reg类似；
