cadence HDL 16.5 总是打包不成功，提示阻容有问题，详细见内！

时间：11-06 整理：3721RD 点击：

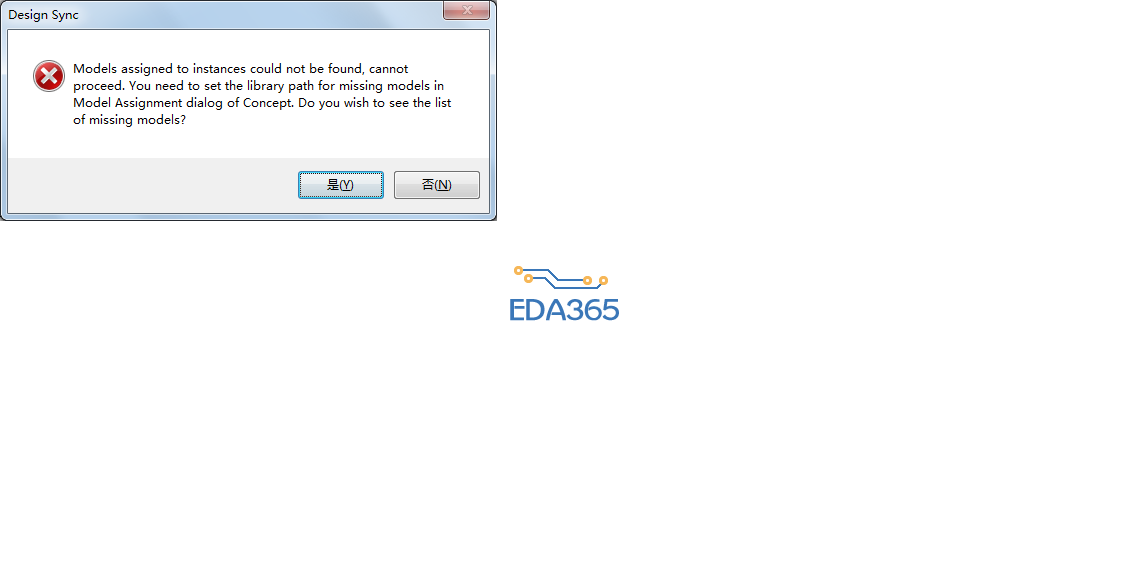

ConceptHDL - Constraint Manager Synchronization Log
====================================================

----------------------------
Running audit on all the signal models present in design.
----------------------------
Error:             Signal Model "10uF" on instance"@stepper_lib.stepper(sch_1):page1_i250"
Error:             Signal Model "C0.1uF" on instance"@stepper_lib.stepper(sch_1):page1_i290"
Error:             Signal Model "C0.1uF" on instance"@stepper_lib.stepper(sch__1):page1_i291"
。
Error:             Signal Model "C0.1uF" on instance"@stepper_lib.stepper(sch_1):page3_i111"
Error:             Signal Model "10uF" on instance"@stepper_lib.stepper(sch_1):page3_i112"
----------------------------
Audit revealed 168 instances in the design with missing model information.
----------------------------

因该是你用错元件库了！

信号模型存在问题
