CC2541 CC2590的例程有吗?

时间:10-02 整理:3721RD 点击:

如题CC2541 CC2590的例程有吗?

请参考: http://www.ti.com/lit/an/swra422/swra422.pdf

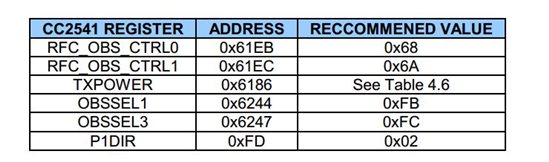

在普通例程里面并没有找到这些寄存器的定义

请下载BLE stack,The TI BLE software stack supports CC2590 and the automatic control is enabled by the use of HCI_EXT_ExtendRFRangeCmd. This command is used to configure the CC254x to automatically control the CC2590. Once this command is used, the configuration will not change unless the CC254x is reset.

我们现在遇到的问题是我们并没有按照TI的demo设计硬件,如何修改参数。HCI_EXT_ExtendRfRangeCmd没有参数可配置

是不是哪里写错了?

HCI_EXT_ExtendRfRangeCmd不用匹配参数。

没有按demo设计硬件是怎么设计的?

就是选的pin和TI demo的pin不一样,现在已经弄好!多谢!
