CAM350里面如何输出坐标档呢？

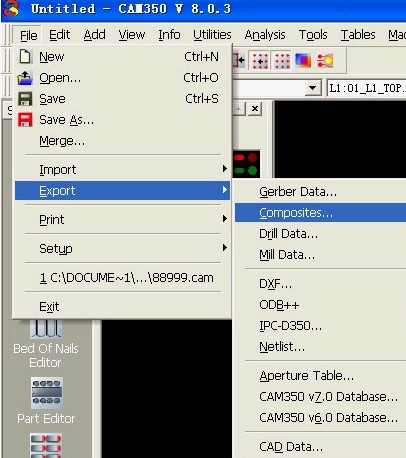

CAM350里面如何输出坐标档呢?是用下图的菜单吗?
我输出后的好象不是坐标档呢：
内容如下：
！ GAPFile Version 3.0
GAPFile Version 3.0 (c) 2002 DownStream Technologies
' CAM350 V8.0.3 (Build 42) Date: Fri Aug 25 19:29:03 2006
Units: Mills
