求教cadstar输出的gerber转protel的问题
时间：10-02
整理：3721RD
点击：

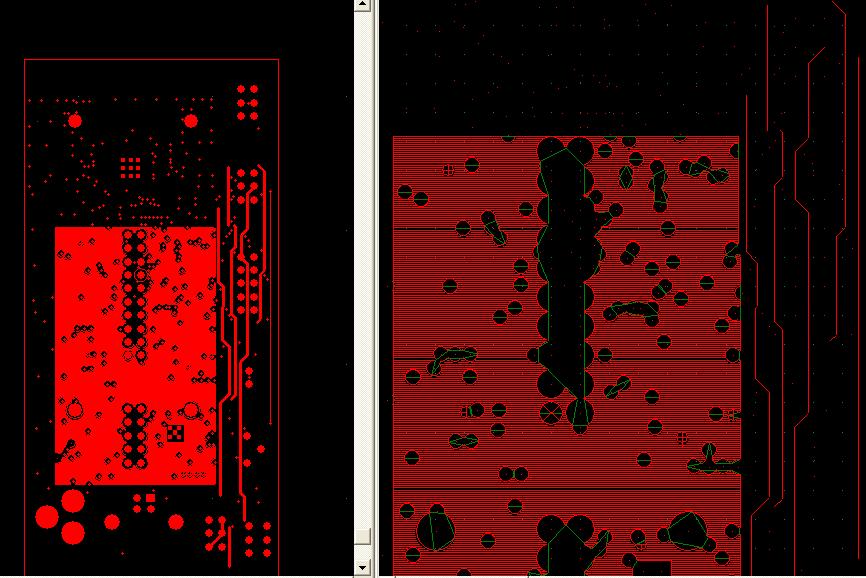

我用protel2.5导入gerber,然后存为pcb,别人导的正确，自己导的怎么都不对，所有的孔，拍都丢失了，protel2.5提示是out of range data found.下面是软件的报告。附件是正确结果和错误结果的对比。图片是截屏，左边正确，右边错误，谁能帮帮我啊！谢谢！
Free Pad : (X:19870mil) (Y:16373mil) (XSize :10mil) (YSize :10mil) (Shape:10) (XSize :10mil)
(YSize :10mil) (Shape:10) (XSize :10mil) (YSize :10mil) (Shape:10) (Hole Size :30mil) (PwrGnd:0)
(Layer :34) (Solder: 2mil) (Paste: 0mil) (Pwr/Gnd: 10mil) (Conductor: 10mil) (Air Gap: 10mil)
Free Pad : (X:19870mil) (Y:16373mil) (XSize :10mil) (YSize :10mil) (Shape:10) (XSize :10mil)
(YSize :10mil) (Shape:10) (XSize :10mil) (YSize :10mil) (Shape:10) (Hole Size :30mil) (PwrGnd:0)
(Layer :34) (Solder: 2mil) (Paste: 0mil) (Pwr/Gnd: 10mil) (Conductor: 10mil) (Air Gap: 10mil)
我的是2.5的，网上搜遍了，也没有找到啊！我的邮箱dxzpw@jstu.edu.cn，我自己也有一些资料，看大家要什么，我贴出来
哈哈,和我转的一个,如果你找到了2.8也传一份给我,Email:liaihua1997@163.com
我以前问过别人,别人说是单位不对,
