第四篇?Rico Board测量前方任意角度的距离

在上篇舵机的基础上，添加了超声波雷达测距模块，并融合到了舵机的驱动中。主要实现功能，通过舵机调整前方180度的任意方向，然后，读取该方向到障碍物的距离。先普及下雷达测距原理：

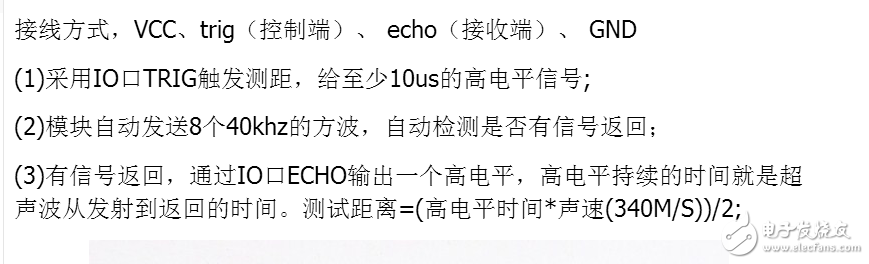

上图，为我的驱动编写提供了基础。

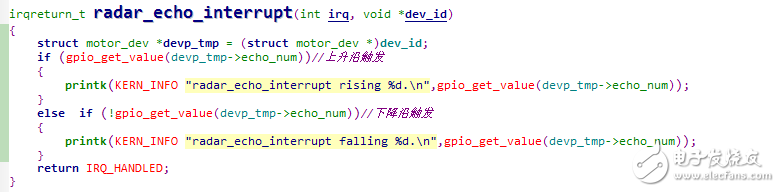

先罗列下我的前期调试过程，主要是在雷达反射波的中断处，关键代码如下：

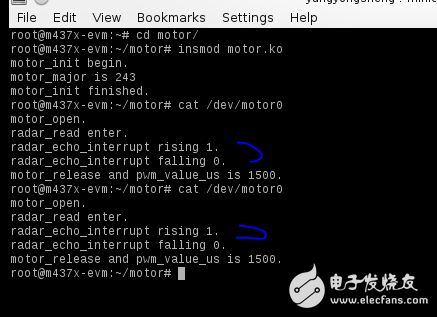

正常调试过程的debug输出：

接下来就是完整的测距代码了。
代码如下：

1. /**

2. * [url=home.php?mod=space&uid=1455510]@file[/url]   motor.c

3. * [url=home.php?mod=space&uid=40524]@author[/url] yang yongsheng

4. * @date   2016.11.2

5. */

6.

7. #include

8. #include

9. #include

10. #include                  // Required for the GPIO functions

11. #include

12. #include

13. #include

14. #include

15. #include

16. #include

17. #include

18. #include

19. #include

20. #include

21.

22. #define NAME_LEN 16

23.

24. /*gpio5_8*/

25. //#define MOTOR_GPIO_NUM 168

26.

27. #define RADAR_TIME_SCALE 1000

28.

29. /*gpio5_9*/

30. #define LED_GPIO_NUM 169

31.

32.

33. #define MOTOR_NUM 1

34. #define MOTOR_NAME "rico_lan motor"

35.

36. #define MOTOR_MAJOR 0

37. static int motor_major = MOTOR_MAJOR;

38. static dev_t motor_dev_num;

39. int motor_gpio[MOTOR_NUM] = {113};

40. int trig_gpio[MOTOR_NUM] = {110};

41. int echo_gpio[MOTOR_NUM] = {111};

42.

43.

44.

45. MODULE_LICENSE("GPL");

46. MODULE_AUTHOR("yang yongsheng ");

47. MODULE_VERSION("0.1");

48.

49. struct motor_dev{

50.         struct cdev cdev;

51.         int num;//舵机引脚

52.         int trig_num;//雷达触发引脚

53.         int echo_num;//雷达接受引脚

54.         unsigned int radar_time;//雷达时间

55.         unsigned int pwm_value_us;//舵机高脉冲时间

56.         unsigned int echo_irq_num;

57.         struct hrtimer radar_hrt;

58.         struct hrtimer hrt;

59.         struct semaphore radar_sem;

60.         char name[NAME_LEN];

61.         bool pwm_state;

62.         bool hrt_state;

63.         bool radar_hrt_state;

64. } *motor_devp;

65.

66. struct class *motor_class;

67.

68.

69.

70. static enum hrtimer_restart motor_hrtimer_callback(struct hrtimer *hrt)

71. {

72.         struct motor_dev *devp_tmp;

73.         devp_tmp = container_of(hrt, struct motor_dev, hrt);

74.         devp_tmp->pwm_state = ！devp_tmp->pwm_state;

75.         gpio_set_value(devp_tmp->num, devp_tmp->pwm_state);

76.         if(devp_tmp->pwm_state == false)

77.         hrtimer_forward_now(hrt, ns_to_ktime((20000-devp_tmp->pwm_value_us)*1000));//T=20,000ns

78.         else if(devp_tmp->pwm_state == true)

79.         hrtimer_forward_now(hrt, ns_to_ktime((devp_tmp->pwm_value_us) * 1000));//T=20,000ns

80.         return HRTIMER_RESTART;

81. }

82.

83. static enum hrtimer_restart radar_hrtimer_callback(struct hrtimer *hrt)

84. {

85.         struct motor_dev *devp_tmp;

86.         devp_tmp = container_of(hrt, struct motor_dev, radar_hrt);

87.         (devp_tmp->radar_time)++;

88.         hrtimer_forward_now(hrt, ns_to_ktime(RADAR_TIME_SCALE));

89.         return HRTIMER_RESTART;

90. }

91.

92. irqreturn_t radar_echo_interrupt(int irq, void *dev_id)

93. {

94.         struct motor_dev *devp_tmp = (struct motor_dev *)dev_id;

95.         if (gpio_get_value(devp_tmp->echo_num))//上升沿触发

96.         {

97.                 if(！down_trylock(&devp_tmp->radar_sem))

98.                 {

99.                 hrtimer_init(&devp_tmp->radar_hrt, CLOCK_MONOTONIC, HRTIMER_MODE_REL);

100.                 devp_tmp->radar_hrt.function = radar_hrtimer_callback;

101.                 devp_tmp->radar_time = 0;

102.                 hrtimer_start(&devp_tmp->radar_hrt, ns_to_ktime(RADAR_TIME_SCALE), HRTIMER_MODE_REL);

103.                 devp_tmp->radar_hrt_state = false;

104.                 }

105.         }

106.         else  if (！gpio_get_value(devp_tmp->echo_num))//下降沿触发

107.         {

108.                 devp_tmp->radar_hrt_state = true;

109.                 up(&devp_tmp->radar_sem);

110.                 hrtimer_cancel(&devp_tmp->radar_hrt);

111.         }

112.         return IRQ_HANDLED;

113. }

114.

115. int motor_open (struct inode *inode, struct file *filp)

116. {

117.         struct motor_dev *devp_tmp;

118.         devp_tmp = container_of(inode->i_cdev, struct motor_dev, cdev);

119.         filp->private_data = devp_tmp;

120.         if(devp_tmp->hrt_state == false)

121.         {

122.                 hrtimer_init(&devp_tmp->hrt, CLOCK_MONOTONIC, HRTIMER_MODE_REL);

123.                 devp_tmp->hrt.function = motor_hrtimer_callback;

124.                 gpio_set_value(devp_tmp->num, devp_tmp->pwm_state);

125.                 hrtimer_start(&devp_tmp->hrt, ns_to_ktime(devp_tmp->pwm_value_us), HRTIMER_MODE_REL);

126.                 devp_tmp->hrt_state = true;

127.                 devp_tmp->radar_hrt_state = false;

128.         }

129.         sema_init(&devp_tmp->radar_sem, 1);

130.         printk(KERN_INFO "motor_open.\n");

131.         return 0;

132. }

133.

134. int motor_release (struct inode *inode, struct file *filp)

135. {

136.         struct motor_dev *devp_tmp;

137.         devp_tmp = filp->private_data;

138.         printk(KERN_INFO "motor_release and pwm_value_us is %d.\n", devp_tmp->pwm_value_us);

139.         return 0;

140. }

141.

142. ssize_t motor_write (struct file *filp, const char __user *buf, size_t count, loff_t *ppos)

143. {

144.         char pwm_value_tmp[8];

145.         struct motor_dev *motor_devp_tmp = filp->private_data;

146.         copy_from_user(pwm_value_tmp, buf, sizeof(buf));

147.         gpio_set_value(LED_GPIO_NUM        , motor_devp_tmp->pwm_state);

148.         motor_devp_tmp->pwm_value_us = simple_strtoul(pwm_value_tmp, NULL, 10);

149.         if(motor_devp_tmp->pwm_value_us > 2500)

150.                 motor_devp_tmp->pwm_value_us = 2500;

151.         else if(motor_devp_tmp->pwm_value_us pwm_value_us = 500;

152.         printk(KERN_INFO "pwm_value is %d.\n", motor_devp_tmp->pwm_value_us);

153.         printk(KERN_INFO "motor_write.\n");

154.         return count;

155. }

156.

157. ssize_t radar_read (struct file *filp, char __user *buf, size_t count, loff_t *ppos)

158. {

159.         struct motor_dev *motor_devp_tmp = filp->private_data;

160.         gpio_set_value(motor_devp_tmp->trig_num, false);

161.         udelay(10);

162.         gpio_set_value(motor_devp_tmp->trig_num, true);

163.         udelay(100);

164.         gpio_set_value(motor_devp_tmp->trig_num, false);

165.         mdelay(10);

166.         down(&motor_devp_tmp->radar_sem);

167.         if(motor_devp_tmp->radar_hrt_state == true)

168.                 printk(KERN_INFO "radar_read ente radar_timer is %dus and radar_len is %dmm.\n", motor_devp_tmp->radar_time, 34*(motor_devp_tmp->radar_time)/100);

169.         up(&motor_devp_tmp->radar_sem);

170.         return 0;

171. }

172.

173.

174. static struct file_operations motor_fops =

175. {

176.         .owner = THIS_MODULE,

177.         .open = motor_open,

178.         .release = motor_release,

179.         .write = motor_write,

180.         .read = radar_read,

181. };

182.

183. int motor_setup(struct motor_dev *devp, int min, int num, int trig, int echo)

184. {

185.         int ret = 0;

186.         sprintf(devp->name, "motor%d", min);

187.         if(！gpio_is_valid(num))

188.         {

189.                 printk(KERN_INFO "invalid motor%d_gpio_num:%d.\n",min, num);

190.                 goto fail_num;

191.         }

192.         else

193.         {

194.         gpio_request(num, "sysfs");

195.         gpio_direction_output(num, false);

196.         gpio_export(num, false);        /*cause GPIO_NUM to appear in /sys/class/gpio*/

197.         }

198.         if(！gpio_is_valid(trig))

199.         {

200.                 printk(KERN_INFO "invalid motor%d_gpio_trig:%d.\n",min, trig);

201.                 goto fail_trig;

202.         }

203.         else

204.         {

205.         gpio_request(trig,"sysfs");

206.         gpio_direction_output(trig, false);

207.         gpio_export(trig, false);

208.         }

209.         if(！gpio_is_valid(echo))

210.         {

211.                 printk(KERN_INFO "invalid motor%d_gpio_trig:%d.\n",min, trig);

212.                 goto fail_echo;

213.         }

214.         else

215.         {

216.         gpio_request(echo,"sysfs");

217.         gpio_direction_input(echo);

218.         gpio_export(echo, false);

219.         }

220.         devp->num = num;

221.         devp->trig_num = trig;

222.         devp->echo_num = echo;

223.         devp->pwm_value_us = 1500;//500~2500 us

224.         devp->pwm_state = true;

225.         devp->hrt_state = false;

226.         devp->radar_hrt_state = false;

227.         devp->echo_irq_num = gpio_to_irq(echo);

228.         request_irq(devp->echo_irq_num, radar_echo_interrupt, IRQF_TRIGGER_RISING|IRQF_TRIGGER_FALLING, "radar_echo_handler", devp);

229.         devp->cdev.owner = THIS_MODULE;

230.         cdev_init(&devp->cdev, &motor_fops);

231.         ret = cdev_add(&devp->cdev, MKDEV(motor_major, min), 1);

232.         if(ret)

233.         {

234.                 printk(KERN_INFO "error %d adding motor%d.\n", ret, min);

235.         }

236.         else

237.         {

238.                 device_create(motor_class, NULL, MKDEV(motor_major, min), NULL,devp->name);

239.         }

240.         return 0;

241. fail_echo:

242.         gpio_unexport(trig);

243. fail_trig:

244.         gpio_unexport(num);

245. fail_num:

246.         return -ENODEV;

247. }

248.

249. int __init motor_init(void)

250. {

251.         int ret,i;

252.         printk(KERN_INFO "motor_init begin.\n");

253.         if(！gpio_is_valid(LED_GPIO_NUM))

254.         {

255.                 printk(KERN_INFO "invalid LED_GPIO_NUM:%d.\n",LED_GPIO_NUM);

256.                 return -ENODEV;

257.         }

258.

259.         motor_devp = kzalloc(sizeof(struct motor_dev) * MOTOR_NUM, GFP_KERNEL);

260.         if(IS_ERR(motor_devp))

261.         {

262.                 printk(KERN_INFO "no space for motor_dev.\n");

263.                 return -ENOMEM;

264.         }

265.

266.         motor_class = class_create(THIS_MODULE, MOTOR_NAME);

267.

268.         if(motor_major == 0)

269.         {

270.                 ret = alloc_chrdev_region(&motor_dev_num, 0, MOTOR_NUM, MOTOR_NAME);

271.                 motor_major = MAJOR(motor_dev_num);

272.         }

273.         else

274.         {

275.                 motor_dev_num = MKDEV(motor_major, 0);

276.                 ret = register_chrdev_region(motor_dev_num, MOTOR_NUM, MOTOR_NAME);

277.         }

278.         if(ret hrt);

279.                 gpio_unexport((motor_devp+i)->num);

280.                 gpio_free((motor_devp+i)->num);

281.                 gpio_unexport((motor_devp+i)->trig_num);

282.                 gpio_free((motor_devp+i)->trig_num);

283.                 gpio_unexport((motor_devp+i)->echo_num);

284.                 gpio_free((motor_devp+i)->echo_num);

285.                 free_irq((motor_devp+i)->echo_irq_num, (motor_devp+i));

286.                 device_destroy(motor_class,MKDEV(motor_major,i));

287.                 cdev_del(&(motor_devp+i)->cdev);

288.                 unregister_chrdev_region(MKDEV(motor_major, i), 1);

289.                 kfree(motor_devp+i);

290.         }

291.

292.

293.         gpio_unexport(LED_GPIO_NUM);

294.         gpio_free(LED_GPIO_NUM);

295.         class_destroy(motor_class);

296.

297.         printk(KERN_INFO "motor_exit finished.\n");

298. }

299.

300. module_init(motor_init);

301. module_exit(motor_exit);


复制代码

我选取了三个方向，现场图示如下：

它们依次对应的脉宽长度为1500us、1000us、2000us。

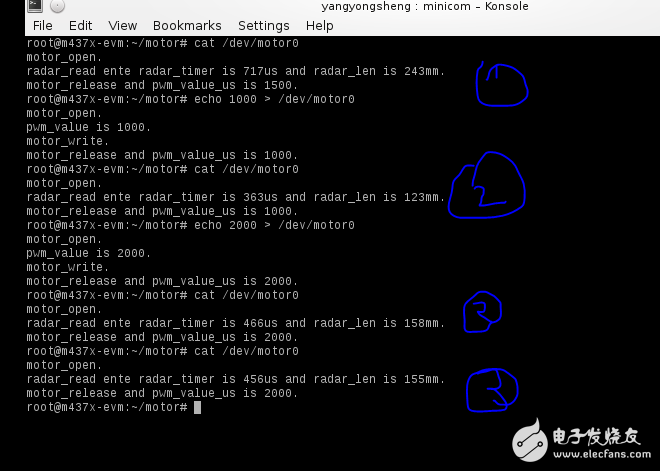

debug口的调试信息如下：

舵机加雷达的驱动调试告一段落，代码中关键的部分是我引入信号量来告知距离信息可用。
