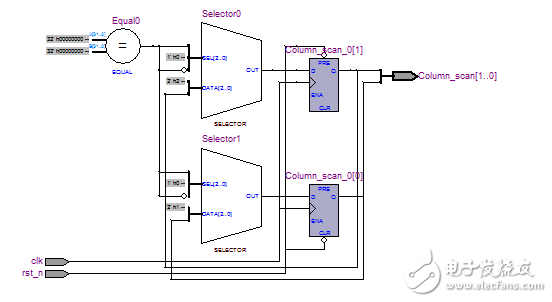

麻烦各位帮我看一下，出现下面的代码出现什么问题？怎么解决？
input clk,
input rst_n,
output [1:0] Column_scan
);
reg [18:0] counter1;
always@(posedge clk or negedge rst_n)
begin
if(！rst_n)
counter1<=19'd0;
else if(counter1==499_999)
counter1<=19'd0;
else
counter1<=counter1+1'b1;
end
reg[1:0] t;
always@(posedge clk or negedge rst_n)
begin
if(！rst_n)
t<=2'd0;
else if(t==2'd2)
t<=2'd0;
else
t<=t+1'b1;
end
reg [1:0] Column_scan_0;
always@(posedge clk or negedge rst_n)
begin
if(！rst_n)
Column_scan_0<=2'b10;
else if(counter1==4999_999)
case(t)
2 'd0: Column_scan_0<=2'b10;
2 'd1: Column_scan_0<=2'b01;
endcase
end
assign Column_scan=Column_scan_0;
endmodule
1
module Column_scan_seg(
clk ,
rst_n ,
Column_scan
);
input clk ;
input rst_n ;
output [1:0] Column_scan ;
wire [1:0] Column_scan ;
reg [18:0] counter1 ;
reg [1:0] t ;
reg [1:0] Column_scan_0 ;
always @(posedge clk or negedge rst_n)begin
if(rst_n==1'b0)begin
counter1<=0;
end
else if(counter1==4_999_999) begin
counter1<=0;
end
else
counter1<=counter1+1;
end
always @(posedge clk or negedge rst_n)begin
if(rst_n==1'b0)begin
t<=0;
end
else if(counter1==4_999_999) begin
if(t==2)
t<=0;
else
t<=t+1;
end
end
always @(posedge clk or negedge rst_n)begin
if(rst_n==1'b0)begin
Column_scan_0<=2'b10;
end
else begin
case(t)
0: Column_scan_0<=2'b10;
1: Column_scan_0<=2'b01;
endcase
end
end
assign Column_scan = Column_scan_0 ;
endmodule
不太好弄?
怎么讲?
t 是能取到2的，你case语句并没有对此情况进行考虑，第二个10ms Column_scan_0就会等于不定值
当然，我指的是你使用的时钟是50M才是对应的10ms～
这个代码真的还挺乱的
帮你修改了一下代码
谢谢各位的帮助！
